Which Anchor Winch is Right For You?
Vessel size. Water type. Drop speed. Budget. Four questions, one perfect winch. Scroll through to match your boat to the exact unit that fits.
Start Here
Four questions that narrow it down fast.
Every winch in the catalog is built to the same standards. These four questions point to which series and size fits your vessel.
Question 1
How long is your boat?
18 to 27 ft points to Sailor. 18 to 30 ft points to Captain. 25 to 55 ft points to Admiral.
Question 2
Fresh, salt, or brackish?
Freshwater only: Sailor. Salt or brackish: Captain or Admiral. HD Sailor covers heavy-use freshwater.
Question 3
Need a fast drop?
Integrated Free Fall comes standard on every Admiral. Captain supports the optional Fast Fall add-on. Sailor does not support either.
Question 4
Standard or HD?
Standard is the core lineup. HD steps up to reinforced SS2205, wireless control with two key fobs, and a widened bolt pattern.
Know the Difference
Free Fall vs Fast Fall: these are not the same thing.
Two ways to drop the anchor fast. One is built into the winch. One is an add-on unit. Knowing which is which saves a confused order.
Integrated Free Fall
Built into every Admiral from the factory. Maximum drop speed with zero motor resistance. Faster and superior to the Fast Fall add-on.
Electronic Fast Fall
Optional unit that bolts onto Captain Series winches. Doubles the standard deployment speed. Not compatible with the Sailor Series.
The Standard Lineup
Nine models. Three series. Every boat from 18 to 55 feet.
The core Anchor Winch catalog. Every unit is 316 stainless, IP68 sealed, and purpose-built for its water type.
Freshwater · 18 to 27 ft

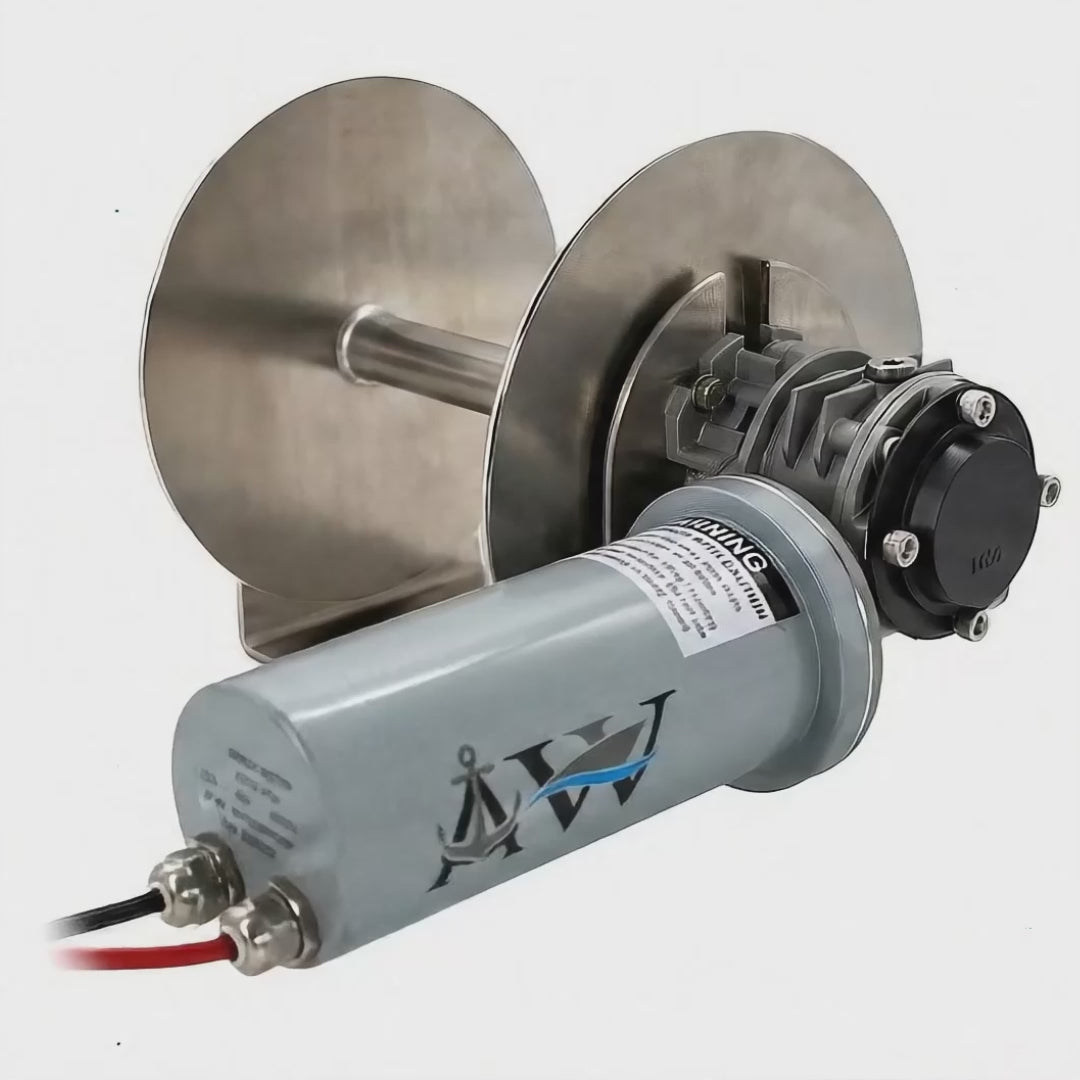

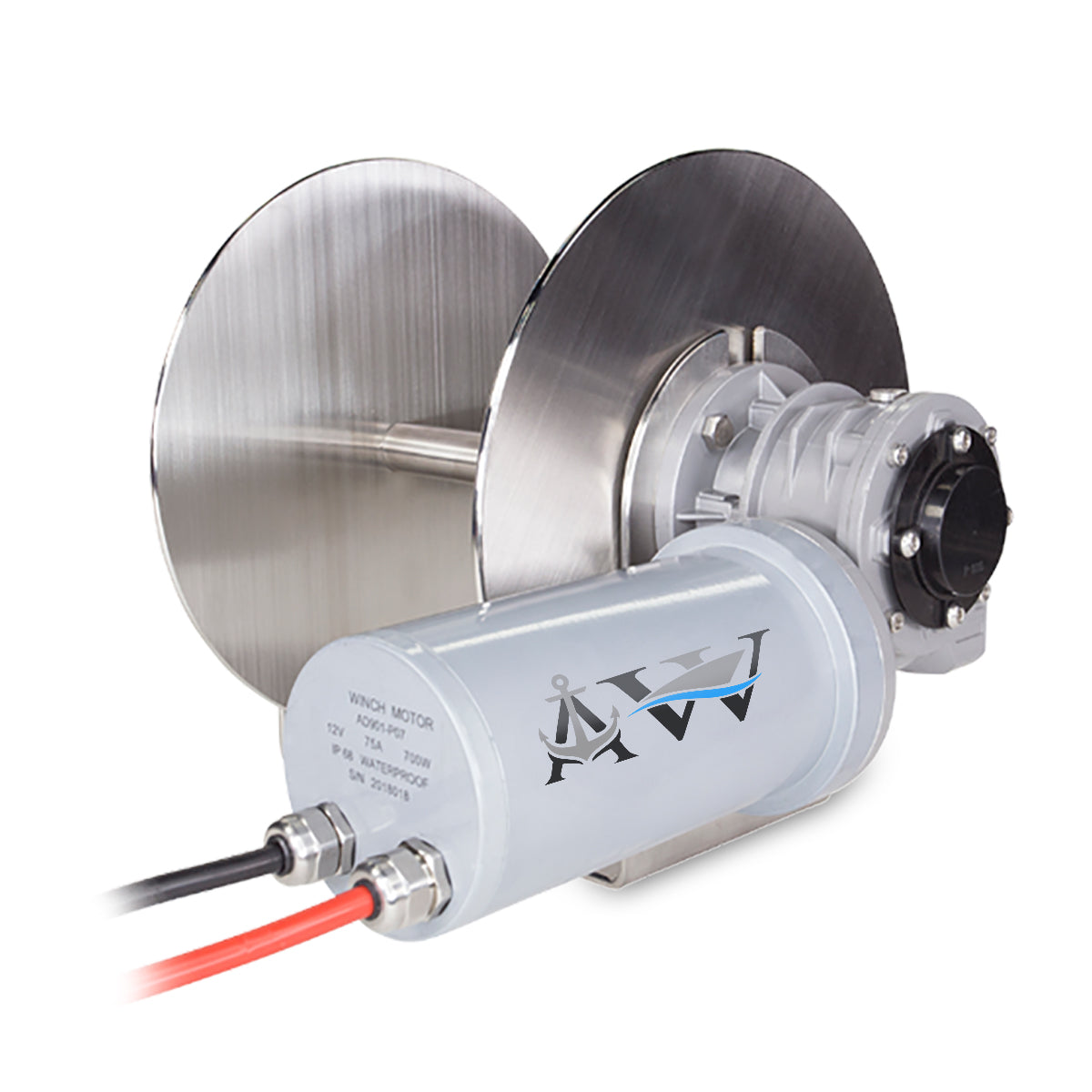

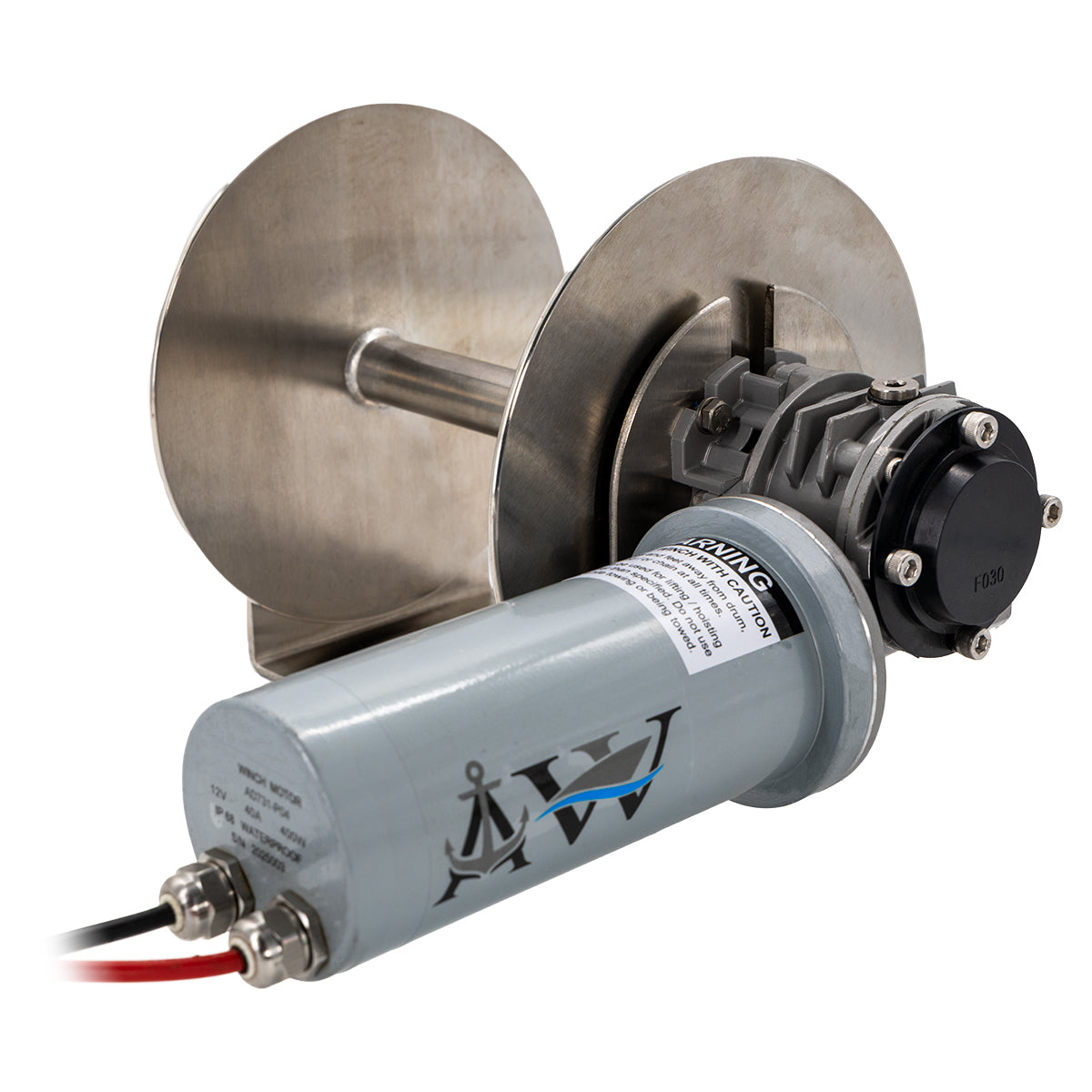

Sailor Series
Engineered specifically for freshwater use in lakes and rivers. Lightweight and efficient for solo captains who want a compact system that is easy to install. 316 stainless spool and base plate, powder-coated aluminum alloy gearbox, power-down direct drive. Does not support Free Fall or the Fast Fall add-on.

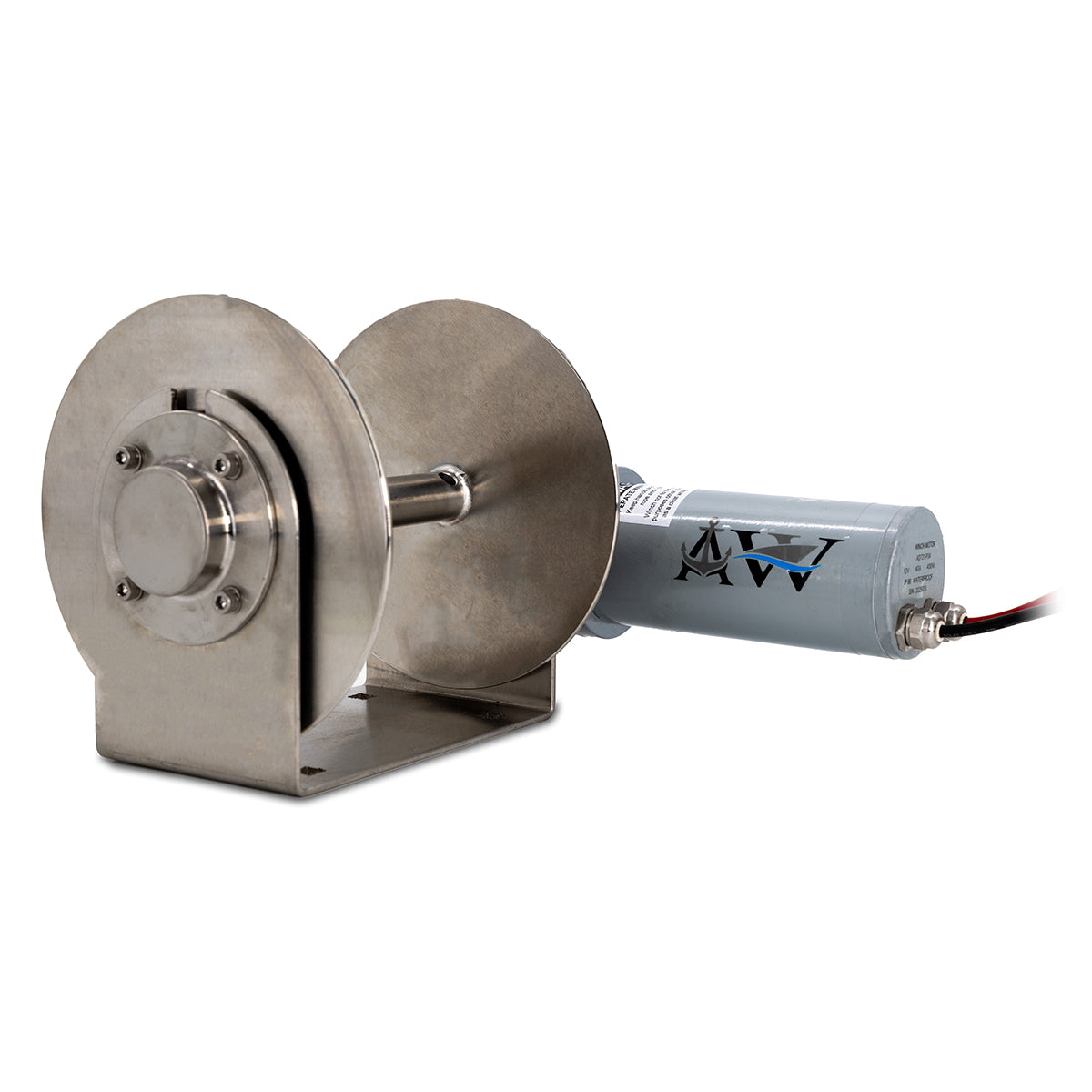

Sailor 1
18 to 21 ft boats
Motor: 12V 480W
Spool: 7" L x 8"
Weight: 20 lbs
Breaker: 40 amp
Sealing: IP68

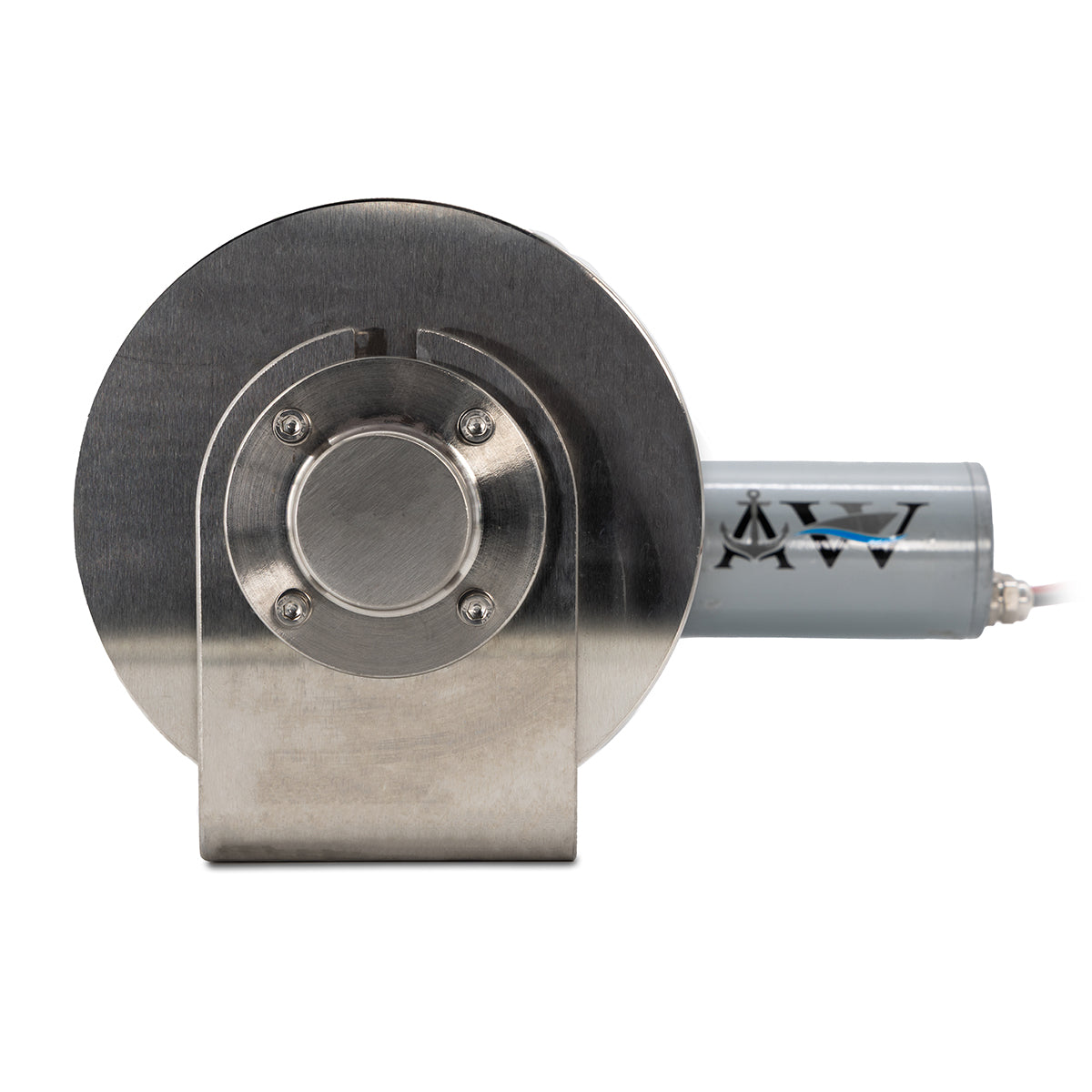

Sailor 2
18 to 24 ft boats
Motor: 12V 480W
Spool: 8" L x 9.5"
Weight: 33 lbs
Breaker: 40 amp
Sealing: IP68
Sailor 3
21 to 27 ft boats
Motor: 12V 720W
Spool: 8" L x 11"
Weight: 35 lbs
Breaker: 60 amp
Sealing: IP68
Salt & Brackish · 18 to 30 ft

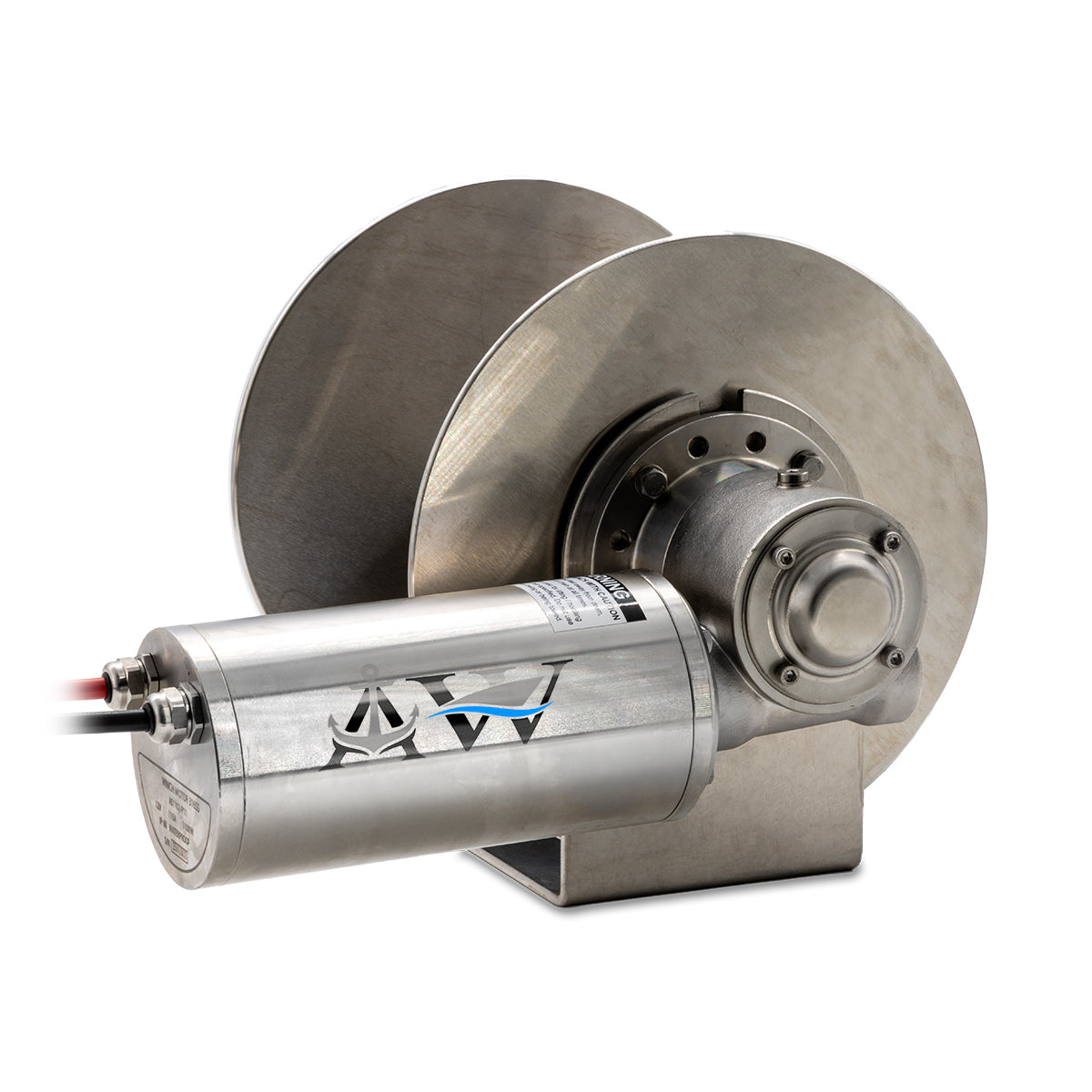

Captain Series
Built for salt and brackish waters with increased brawn for mid-size vessels. Marine-grade stainless, IP68 sealing, and emergency drive key release so the anchor can be deployed manually if power is lost. Every Captain is compatible with the optional Electronic Fast Fall add-on, which doubles the deployment speed.

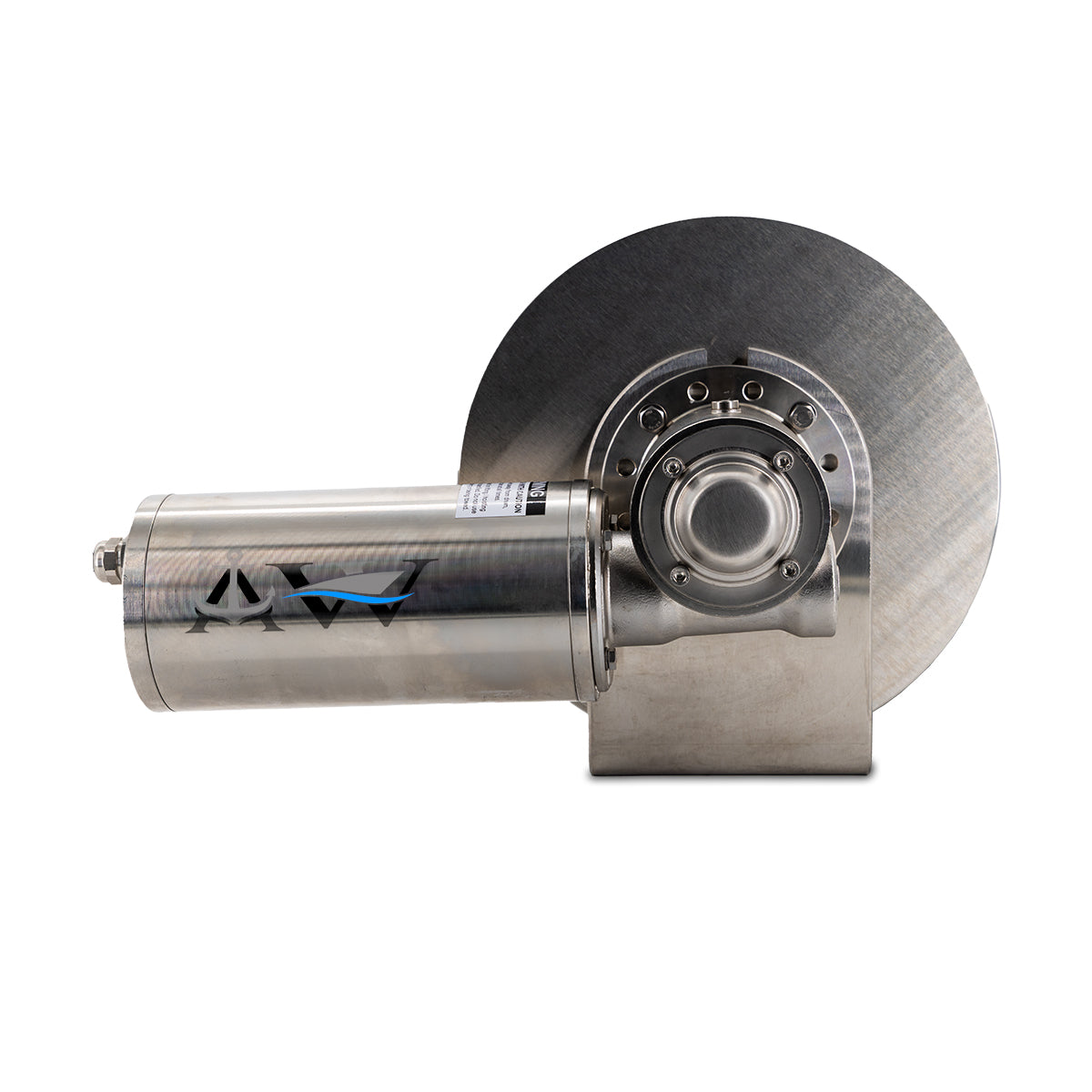

Captain 1
18 to 21 ft boats
Motor: 12V 480W
Spool: 8" L x 9.5"
Weight: 42 lbs
Breaker: 60 amp
Backup: Drive key release
Add-On: Fast Fall ready

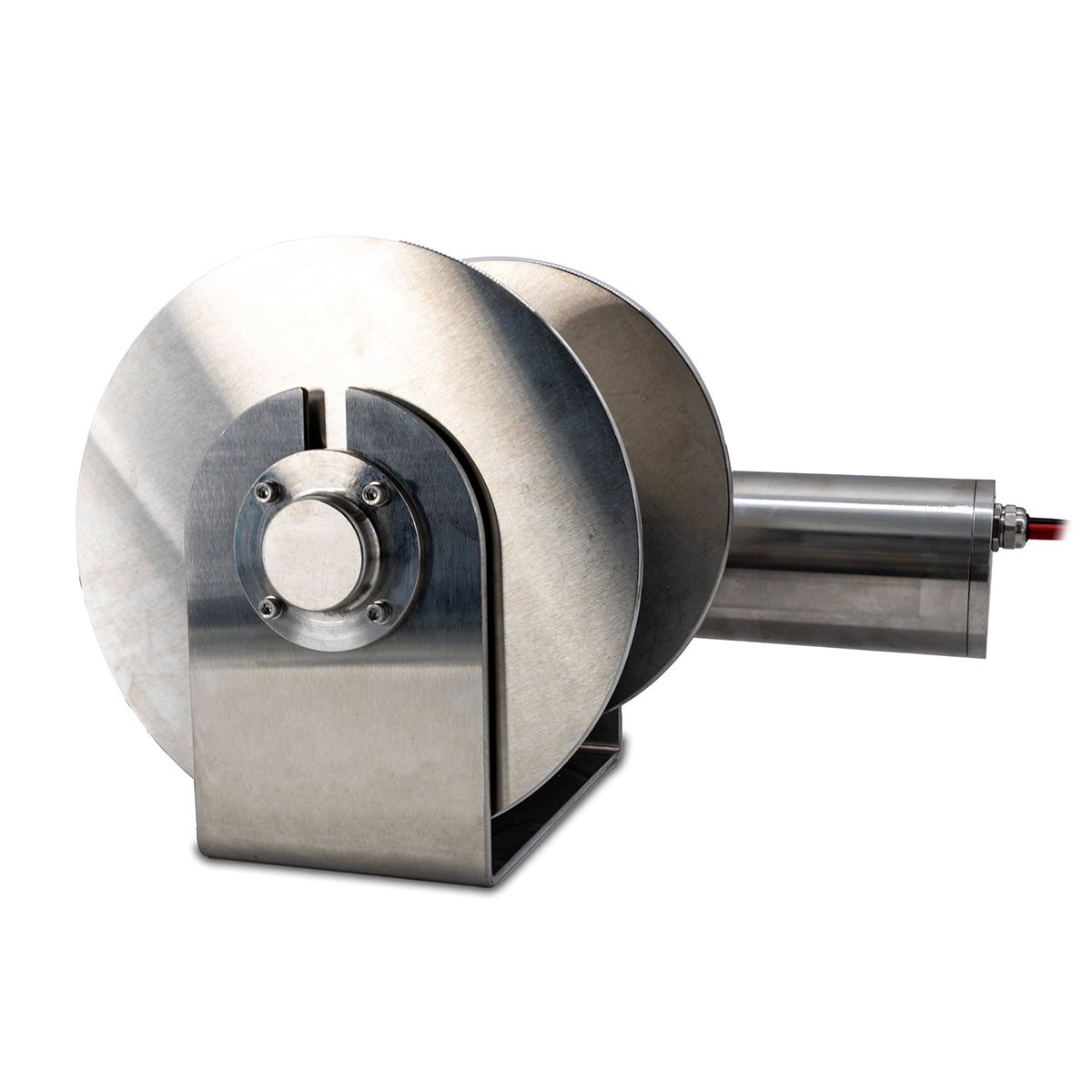

Captain 2
21 to 27 ft boats
Motor: 12V 480W
Spool: 9" L x 9.5"
Weight: 42 lbs
Breaker: 60 amp
Backup: Drive key release
Add-On: Fast Fall ready

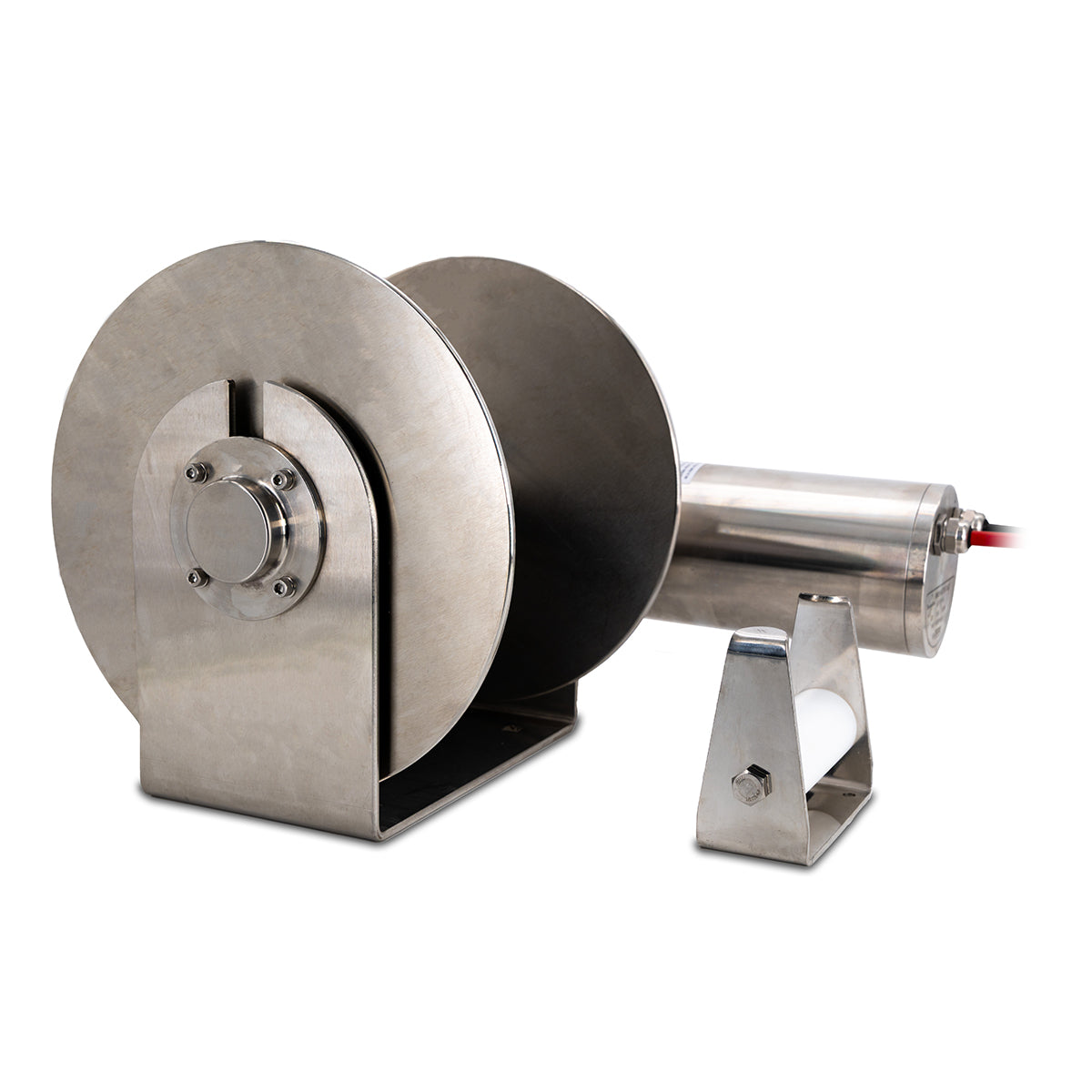

Captain 3
24 to 30 ft boats
Motor: 12V 480W
Spool: 9" L x 12"
Weight: 64 lbs
Breaker: 100 amp
Backup: Drive key release
Add-On: Fast Fall ready
Flagship · Salt & Brackish · 25 to 55 ft

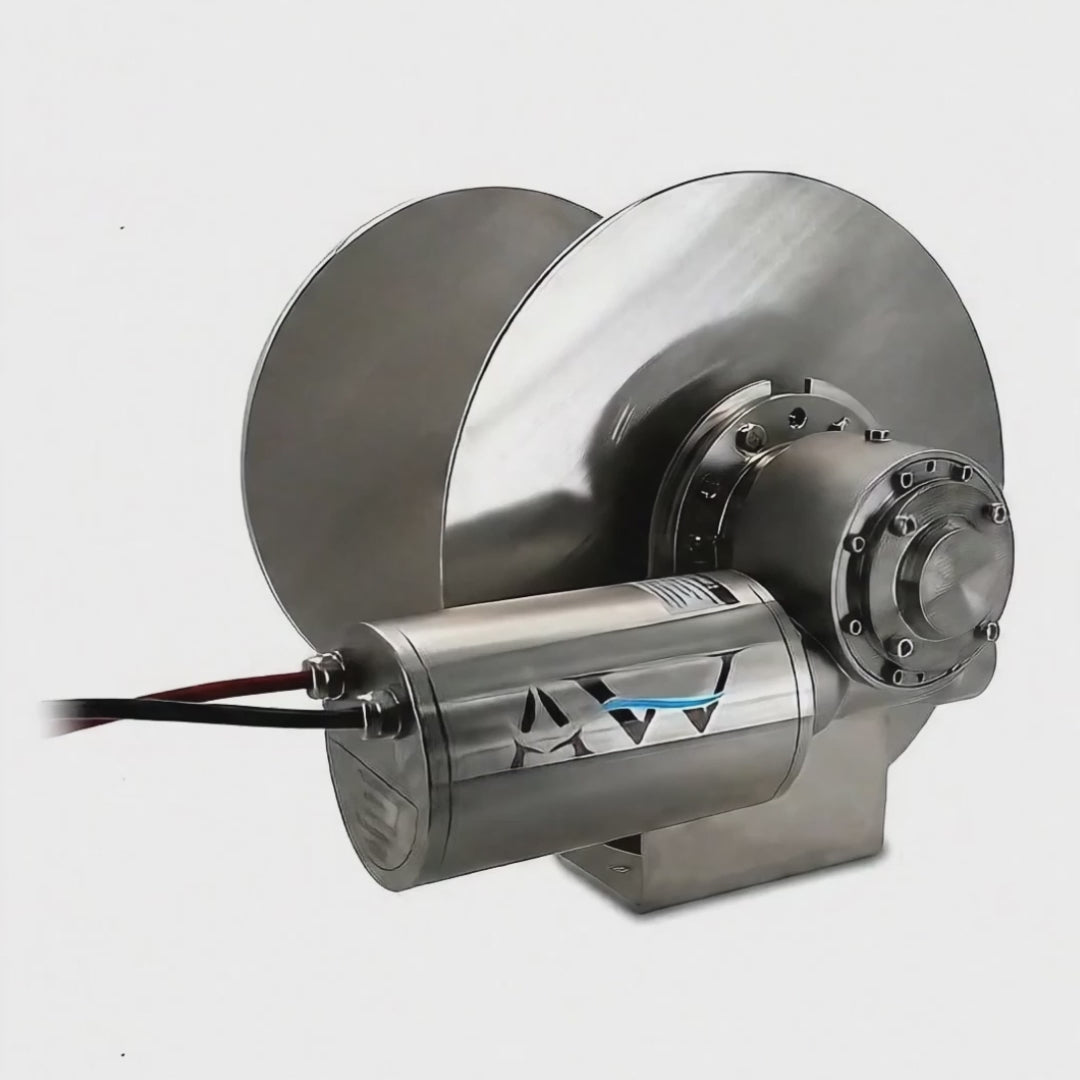

Admiral Series
The most powerful winches in the standard lineup, built for salt and brackish waters on large recreational and commercial boats. Every Admiral ships with integrated Free Fall from the factory. Anchor drops at maximum speed with zero motor resistance. Faster and superior to the Fast Fall add-on. High-power 1500W motors, massive spools, pre-rigged installs, IP68 sealed.
Admiral 4
25 to 35 ft boats
Motor: 12V 1500W
Spool: 11" L x 16"
Weight: 108 lbs
Breaker: 120 amp
Drop: Integrated Free Fall
Admiral 5
35 to 45 ft boats
Motor: 12V 1500W
Spool: 11" L x 16"
Weight: 108 lbs
Breaker: 120 amp
Drop: Integrated Free Fall
Extra: Pre-rigged twin leads
Admiral 6
45 to 55 ft boats
Motor: 12V 1500W
Spool: 14" L x 18"
Weight: 121 lbs
Breaker: 120 amp
Drop: Integrated Free Fall
The HD Lineup
When standard isn't enough: 13 HD models.
Every HD winch is larger and more robust than the standard counterpart. Reinforced SS2205 U-frame with welded corners and integrated gussets. Upgraded SS2205 shaft sizing. Widened bolt pattern for a rock-solid mount. Every HD ships with a wireless control system and two key fobs so operation works from anywhere on the deck.
HD · Freshwater · 18 to 27 ft
HD Sailor Series
HD reinforcement in a freshwater footprint. Designed for solo captains who want the SS2205 U-frame and wireless control on a compact winch.
Sailor DE1 0807 HD
18 to 21 ft boats
Spool: 8" dia x 7" width
Frame: SS2205 U-frame
Control: Wireless + 2 fobs
Mount: Widened bolt pattern
Sealing: IP68
Sailor DE2 1008 HD
18 to 24 ft boats
Spool: 10" dia x 8" width
Frame: SS2205 U-frame
Control: Wireless + 2 fobs
Mount: Widened bolt pattern
Sealing: IP68
Sailor DE3 1209 HD
21 to 27 ft boats
Spool: 12" dia x 9" width
Frame: SS2205 U-frame
Control: Wireless + 2 fobs
Mount: Widened bolt pattern
Sealing: IP68
HD · Salt & Brackish
HD Captain Series
Coastal muscle with the HD structural package. Emergency drive key release, Fast Fall add-on compatible, and a spool range that scales from compact installs up to heavy offshore work.
Captain DS1 0807 HD
Compact mid-size
Spool: 8" dia x 7" width
Frame: SS2205 U-frame
Control: Wireless + 2 fobs
Backup: Drive key release
Add-On: Fast Fall ready
Captain DS2 1008 HD
Mid-size
Spool: 10" dia x 8" width
Frame: SS2205 U-frame
Control: Wireless + 2 fobs
Backup: Drive key release
Add-On: Fast Fall ready
Captain DS3 1209 HD
Mid-size
Spool: 12" dia x 9" width
Frame: SS2205 U-frame
Control: Wireless + 2 fobs
Backup: Drive key release
Add-On: Fast Fall ready
Captain DS4 1409 HD
Large mid-size
Spool: 14" dia x 9" width
Frame: SS2205 U-frame
Control: Wireless + 2 fobs
Backup: Drive key release
Add-On: Fast Fall ready
Captain DS4 1411 HD
Large mid-size
Spool: 14" dia x 11" width
Frame: SS2205 U-frame
Control: Wireless + 2 fobs
Backup: Drive key release
Add-On: Fast Fall ready
Captain DS5 1611 HD
Heavy offshore
Spool: 16" dia x 11" width
Frame: SS2205 U-frame
Control: Wireless + 2 fobs
Backup: Drive key release
Add-On: Fast Fall ready
Captain DS5 1613 HD
Heavy offshore
Spool: 16" dia x 13" width
Frame: SS2205 U-frame
Control: Wireless + 2 fobs
Backup: Drive key release
Add-On: Fast Fall ready
HD Flagship · Salt & Brackish
HD Admiral Series
The top of the catalog. Integrated Free Fall built in from the factory on every HD Admiral, paired with the full HD structural package. Seven spool configurations from compact installs to massive commercial setups.
Admiral FF1 0807 HD
Compact flagship
Spool: 8" dia x 7" width
Frame: SS2205 U-frame
Drop: Integrated Free Fall
Control: Wireless + 2 fobs
Sealing: IP68
Admiral FF2 1008 HD
Mid flagship
Spool: 10" dia x 8" width
Frame: SS2205 U-frame
Drop: Integrated Free Fall
Control: Wireless + 2 fobs
Sealing: IP68
Admiral FF3 1209 HD
Mid flagship
Spool: 12" dia x 9" width
Frame: SS2205 U-frame
Drop: Integrated Free Fall
Control: Wireless + 2 fobs
Sealing: IP68
Admiral FF4 1409 HD
Large flagship
Spool: 14" dia x 9" width
Frame: SS2205 U-frame
Drop: Integrated Free Fall
Control: Wireless + 2 fobs
Sealing: IP68
Admiral FF4 1411 HD
Large flagship
Spool: 14" dia x 11" width
Frame: SS2205 U-frame
Drop: Integrated Free Fall
Control: Wireless + 2 fobs
Sealing: IP68
Admiral FF5 1611 HD
Offshore flagship
Spool: 16" dia x 11" width
Frame: SS2205 U-frame
Drop: Integrated Free Fall
Control: Wireless + 2 fobs
Sealing: IP68
Admiral FF5 1613 HD
Offshore flagship
Spool: 16" dia x 13" width
Frame: SS2205 U-frame
Drop: Integrated Free Fall
Control: Wireless + 2 fobs
Sealing: IP68
Sizing the Ground Tackle
Rope, Chain, and Anchor Recommendations

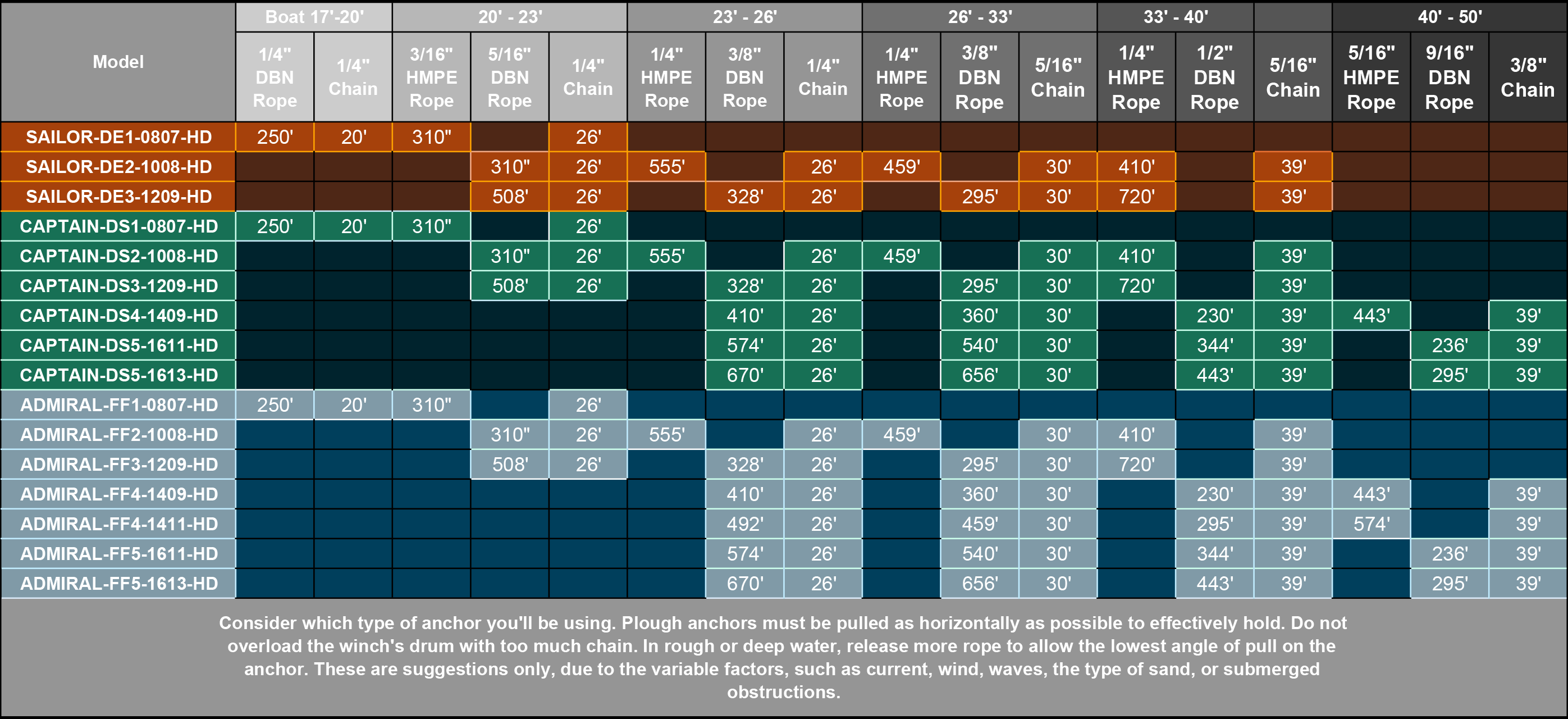

The winch is only half the story. Undersized rope, a too-light anchor, or the wrong chain leader is how good winches end up dragging a boat all afternoon. The sizing chart below matches every HD winch model to the right rode and anchor for the boat length and application.
Rope Sizing
Diameter and length matched to the winch spool and expected depth.
Chain Leader
The right chain length and link size for holding power at the anchor.
Anchor Weight
Matched to the boat so the hook sets first try and stays set under wind.

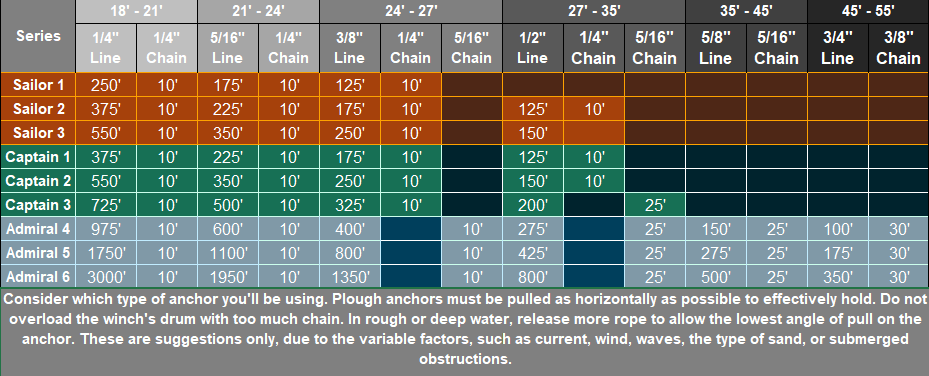

Chart reference for HD models. Standard series sizing follows the same proportions at the matching spool sizes.
Still not sure? We'll help match the winch.
Call or email with the boat length, use case, and water type. We will point to the exact unit that fits.
